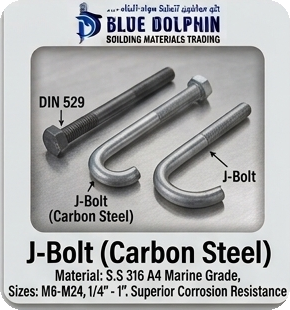

Cast-in anchor bolts manufactured in our own Doha workshop to your drawings — J-type, L-type and plate-type, complete with nuts and washers.
Foundation bolts transfer the load of a steel column, machine base or equipment skid into the concrete foundation below. Blue Dolphin manufactures them in-house from mild steel, high tensile and stainless bar, threaded and bent to the exact projection, embedment and bend radius shown on your drawing.
Every set is supplied as a complete assembly — bolt, template plate where required, hex nut, lock nut and washer — so the site team can set out and grout without hunting for loose items. Hot dip galvanizing and other protective finishes are available for coastal and marine exposure across Qatar.
| Material | MS, High Tensile (8.8 / 10.9), SS 304 & SS 316 |
|---|---|
| Diameter | M10 – M64 (larger to order) |
| Length | 150 mm – 3000 mm, cut to drawing |
| Thread | Metric coarse, rolled or cut |
| Finish | Self colour, zinc plated, hot dip galvanized |
| Standards | IS 5624, DIN 529, ASTM F1554 equivalents |
Sizes, grades or finishes not listed? We manufacture to drawing and source specials — send your list and we will price it.
Send us your sizes, grades and quantities — we reply the same working day.
